John Deere Z320R ZTrak™ 42-in. Deck Mower

Overview:

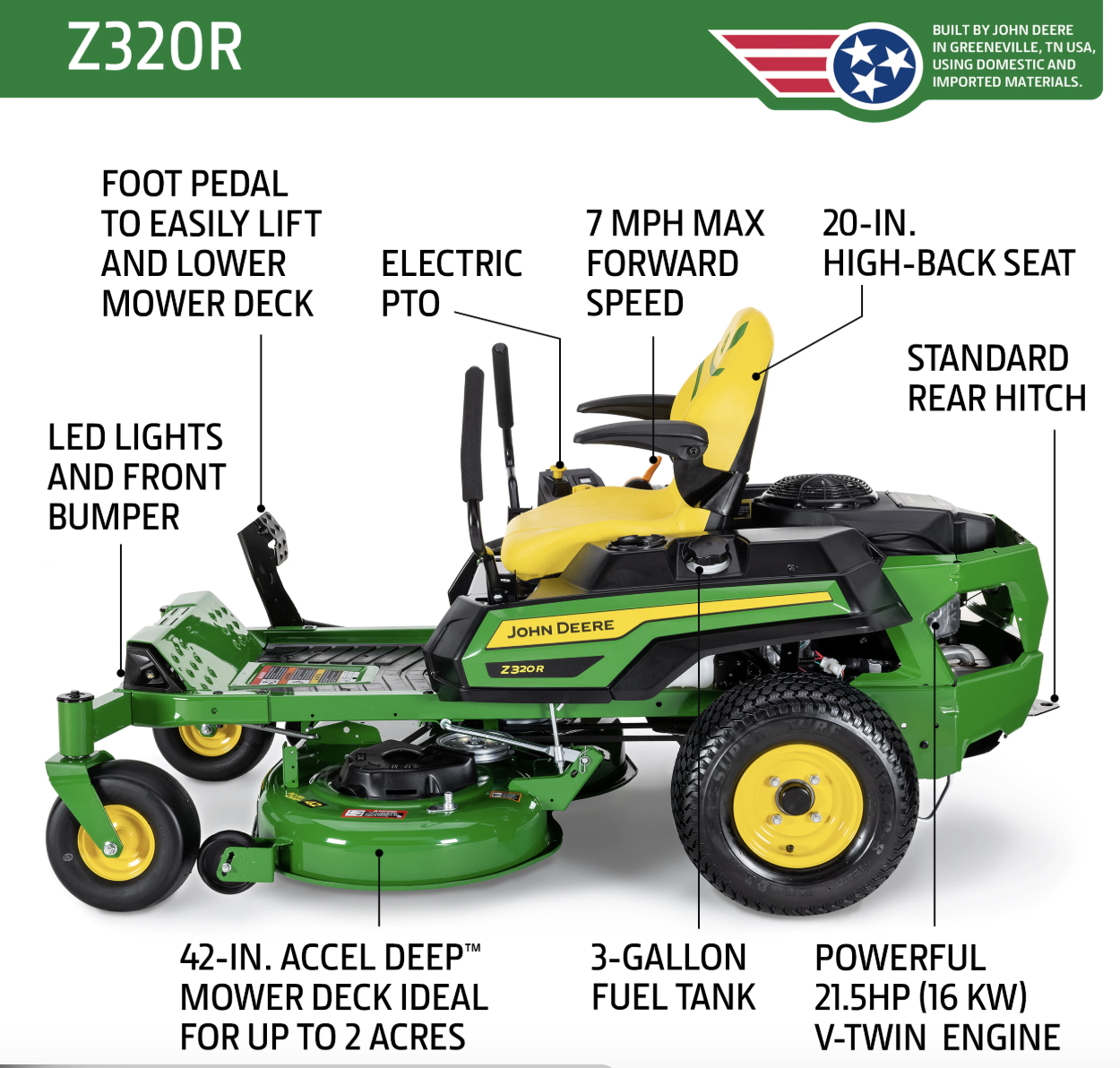

The John Deere Z320R is a Zero-Turn Riding Mower designed for residential properties up to 2 acres. With its 21.5 HP (16 kW) V-Twin engine and 42-inch (107 cm) cutting deck, it delivers fast and efficient mowing while providing excellent comfort with a 20-inch high-back custom seat with armrests.

Key Features

• Engine: V-Twin, 21.5 HP (16 kW), model FR651V

• Displacement: 44.3 cu in (726 cc)

• Lubrication: Full pressure with replaceable filter, capacity 2.1 L

• Type: Overhead valve (OHV)

• Fuel Tank Capacity: 11.4 L

• Cooling Method: Air

• Battery: 12 V, 300 CCA

Transmission & Drive

• Transmission: Hydro-Gear EZT-C dual hydrostatic with twin levers

• Forward Speed: 0–7 mph (0–11.3 km/h)

• Reverse Speed: 0–3.5 mph (0–5.6 km/h)

• Steering Control: Twin levers

• Cut Height Adjustment: 1.25–4.5 in (3–11 cm) with foot lift and dial, 11 positions

• Integrated Parking Brake

Mower Deck & Cutting System

• Cutting Width: 42 in (107 cm) Accel Deep™ deck

• Deck Material: 12-gauge steel (2.7 mm)

• Cutting System: Side discharge, optional MulchControl™ attachment

• Deck Drive: V-belt

• Material Collection: Optional two-bag MCS, 229 L

Chassis & Comfort

• Seat: High-back, custom seat with armrests, two-spring suspension

• Frame: Heavy-duty 2.5x2 in front, 1.5x2 in side tubing, E-coat/powder paint

• Front Tires: 11x6-5 with sealed ball bearings

• Drive Tires: 18x8.5-8

• Cup Holder & Storage Compartment: Standard

Dimensions & Weight

• Wheelbase: 49.4 in (1255 mm)

• Overall Length: 75.4 in (1915 mm)

• Width with Deck: 50.4 in (1280 mm)

• Width without Deck: 43.3 in (1100 mm)

• Height: 43.3 in (1100 mm)

• Weight: 572 lb (260 kg)

Additional Features

• Maximum Towing Capacity: 250 lb (113 kg)

• Optional Accessories: Protective cover, light kit, MulchControl™ system

• Manufacturing Location: Greeneville, Tennessee, USA

• Warranty: 3-year/200-hour bumper-to-bumper
